We have changed the construction design of the beam to eliminate the tubing and are now all plate work.

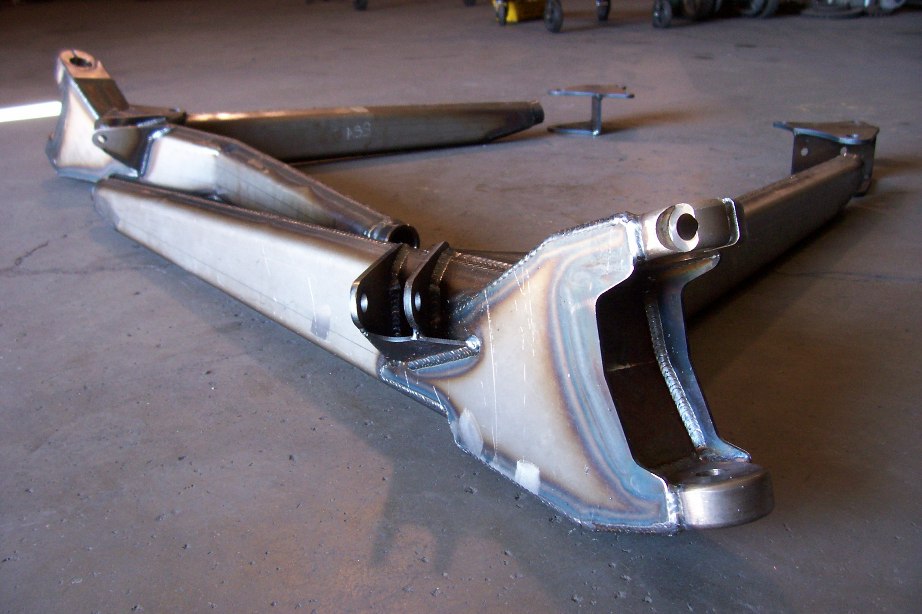

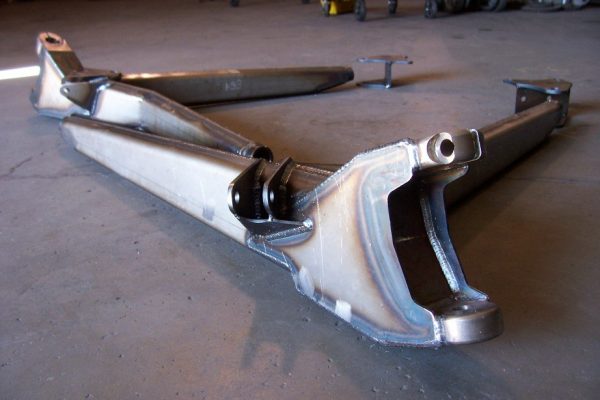

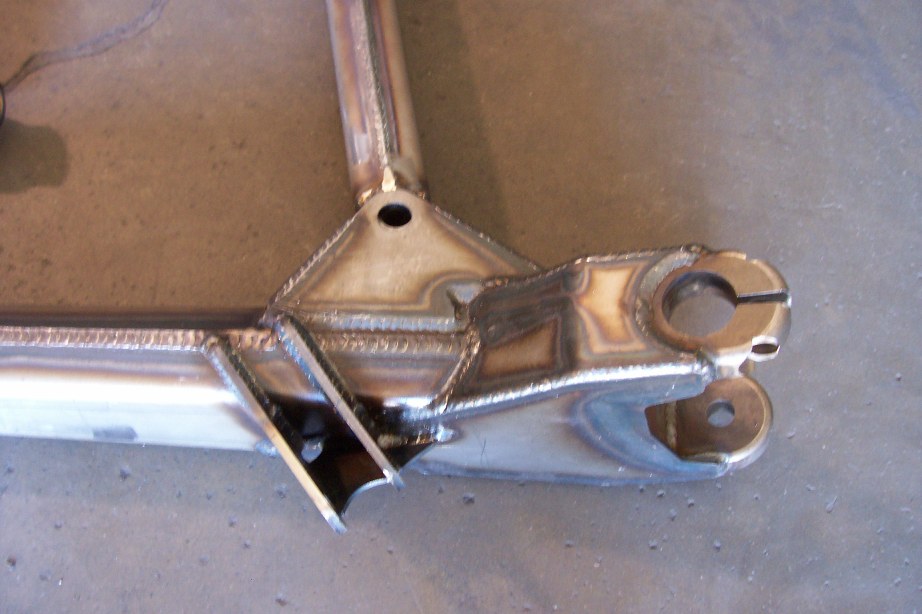

Here is the construction of the beam, there is an inner 3/16 plate the runs the length and 2 outer 3/16 plate that have 2 70* brakes in both of them that forms a prismatic shape when they come together. It has 2 welded surfaces down the length of each beam. The 3 plates is penetrated at the same time in 1 welded pass.

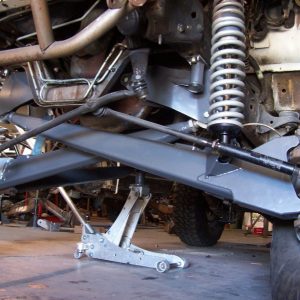

Giant Motorsports’ new Prismatic I-Beam, the design maximizes cross-section in both axis’s. This produces an I-Beam that is restrictive to bending from shock and bump loads.

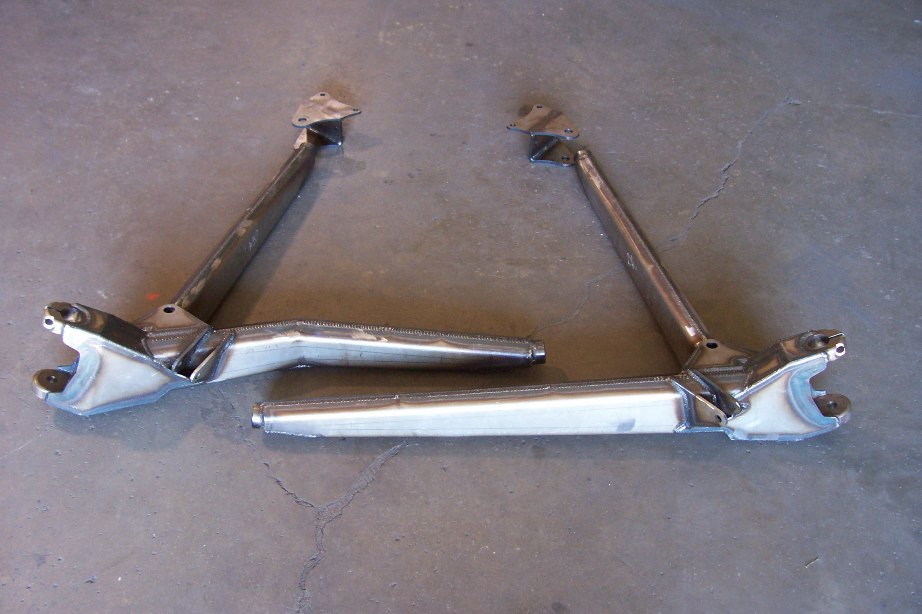

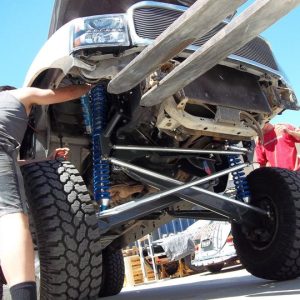

The Equal Length Beams come 82”-87” to the outside of the tires and include; radius arms, and Beam and Radius arm pivot boxes.
Spindle options to be used with these beams: Dana 44 5 on 5.5 spindles.
