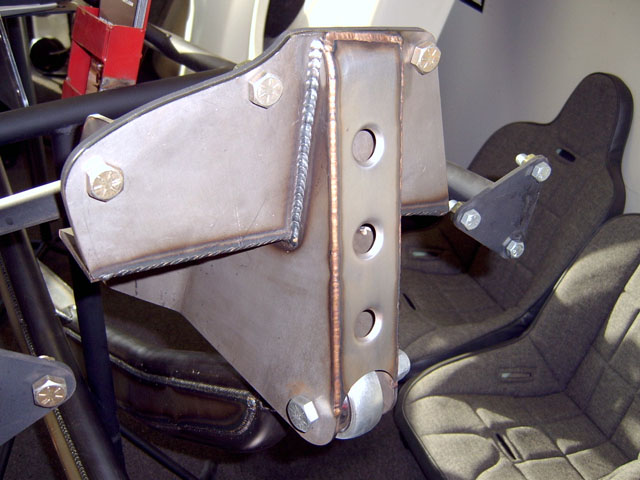

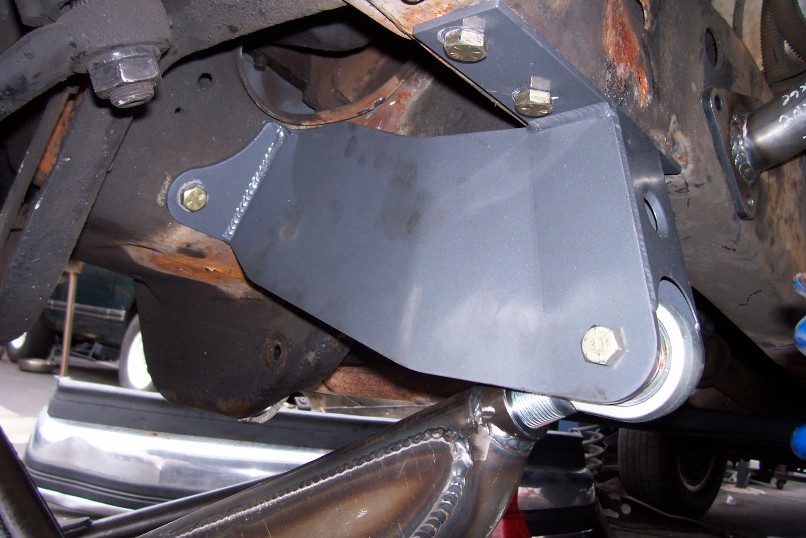

Equal Length Beam Pivots
Price range: $550.00 through $600.00
Heavy-duty equal-length beam pivots for custom I-beam suspension builds. Larger footprint and greater surface area than competing pivots for long-term durability. Fits Rangers, F-150s, Explorers, and Super Duty 4WD.
Giant Motorsports equal-length beam pivots are engineered with a significantly larger footprint than competing pivots — covering more surface area for long-term durability under racing and off-road loads. Whether you're building custom beams for a Ranger, F-150, Explorer, or Super Duty 4WD, these pivots save you time and headache by giving you a solid foundation to build from.
Specifications
- Compatible: Ranger, F-150, Explorer, Super Duty 4WD
- Design: Larger footprint / greater surface area than standard pivots
What’s Included
- Pair of equal-length beam pivots
- All mounting hardware
Notes & Options
- Great base for custom beam builds — pair with the WIY I-Beam Plate Kit
You May Also Need
Order or Ask a Question
Call or text us at 714-265-1450 or email [email protected] — we build everything custom and can answer any fitment questions.
