4-Link Suspension Kits
$2,550.00

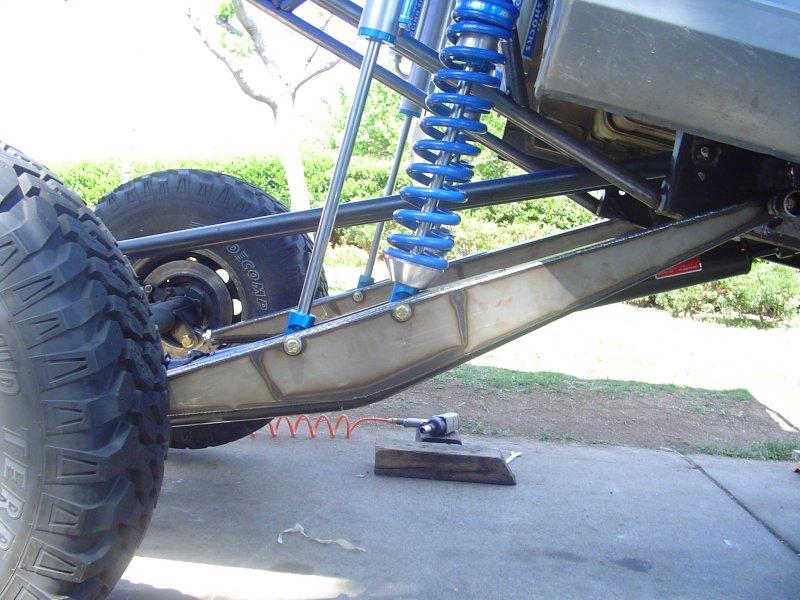

Complete bolt-on 4-link suspension kit for open C-channel frame trucks. Includes upper and lower link arms with redesigned bolt-on frame pivots. Works with a single coil-over shock. Up to 20″ of travel.
Complete Bolt-On 4-Link for Open C-Channel Frame Trucks
The GIANT MotorSports 4-Link Suspension Kit is a complete, bolt-on solution for open C-channel frame trucks — where you can access the frame web from the inside, making a true bolt-on pivot possible without welding to the frame rails. Redesigned lower link arms, reinforced bolt-on frame pivots, single coil-over shock configuration, up to 20\” of wheel travel. The whole system in one kit.
What Is Included
- Upper link arm
- Lower link arms
- Redesigned bolt-on frame pivots
- Hardware
Specifications
- Compatible frame type: Open C-channel
- Maximum wheel travel: Up to 20\”
- Shock configuration: Single coil-over (shock not included)
Open C-Channel vs Boxed Frame
Open C-channel frames have an open inside face on the frame rail — older Ford Rangers, F-150s, Broncos, Explorers, and many mid-size trucks from the 1980s through mid-2000s. Boxed frames are closed on all four sides and require the weld-on Boxed Frame pivots instead. If you are not sure which you have, look at a cross-section of the frame rail.
What You Will Also Need
Shocks and coilovers are not included — size your coil-over to the travel and spring rate your build requires. A bed cage and shock mounts are also separate. See the Link Shock Mounts (Dome Top and Flat Top) for the bed cage starting point. Call 714-265-1450 for fitment questions on your specific truck before ordering.
