Dana 44 TTB Long-Travel System – Custom 4.5″ Plated
$3,950.00

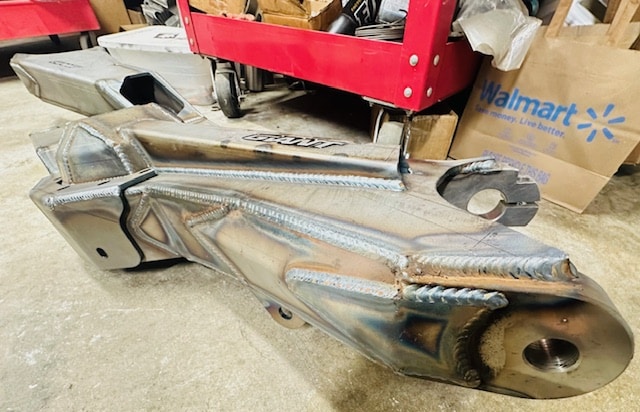

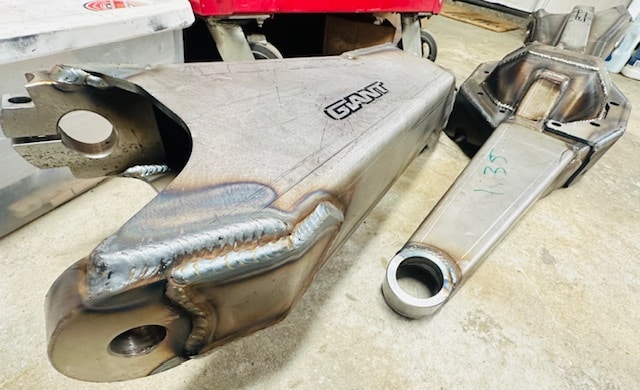

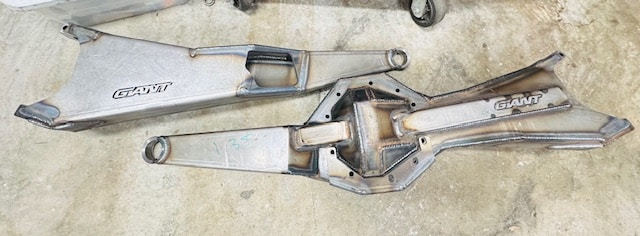

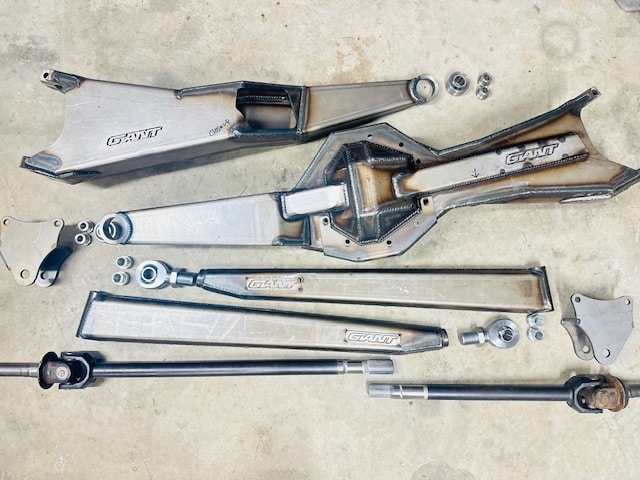

Custom Dana 44 TTB long-travel beams with 4.5″ extended track width per side. Built from 1/4″ main plates, 3/16″ boxed sections, and machined billet beam ends. Engineered for extreme high-speed desert off-road performance.
Custom-Built Dana 44 TTB Beams for Extreme Performance
The GIANT MotorSports Dana 44 TTB Long-Travel System is a custom fabrication — not a bolt-on upgrade. Each set of beams is built to spec using 1/4\” main plates and 3/16\” boxed sections, with machined billet beam ends that retain the factory-style spindle interface. The result is beams significantly stronger and heavier than factory Dana 44 TTB hardware, built for the loads of extreme high-speed desert racing.
Extended track width of 4.5\” per side goes beyond what a stock Dana 44 TTB can achieve, providing the track width needed for proper long-travel geometry at desert race speeds.
Specifications
- Extended track width: 4.5\” per side over stock
- Main plates: 1/4\”
- Boxed sections: 3/16\”
- Beam ends: Machined billet
- Spindle interface: Factory-style (retains stock spindle compatibility)
Who This Is For
For 4WD Ranger and Explorer builds that need more than stock Dana 44 TTB hardware in terms of track width and structural strength. If you are building a serious desert race truck on the Ranger/Explorer TTB platform, these are the beams. For a more basic Dana 44 TTB spindle upgrade, see the 86-97 Ranger/Explorer Dana 44 TTB Conversion Kit.
Custom Build Lead Time
Built to order. Call or text 714-265-1450 to discuss your specific build requirements, track width goals, spindle choice, and current lead time before planning your schedule. Every set is different.
