Weld It Yourself Link
$475.00 – $675.00

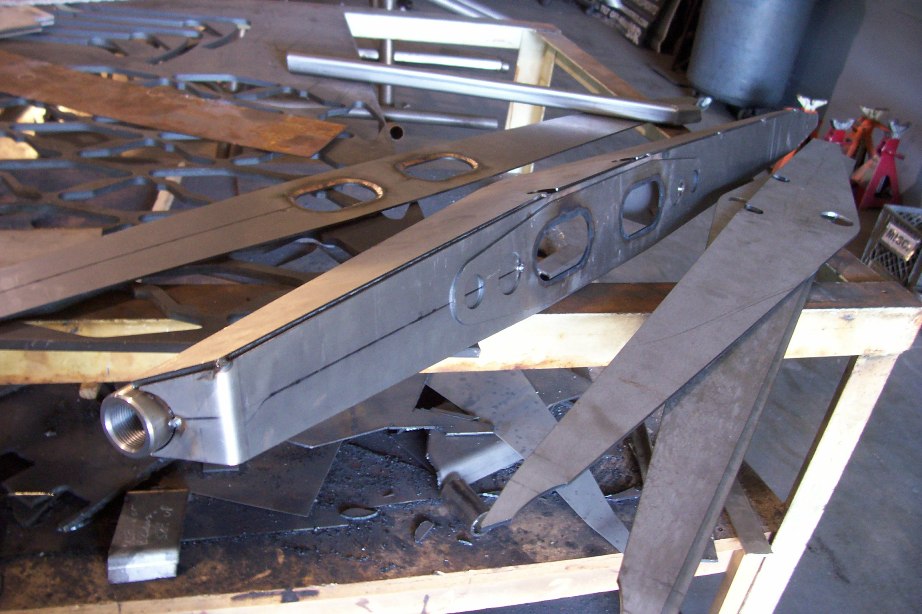

The GIANT Motorsports Weld It Yourself Link is made out of P&O mild so you can tig or MIG weld the two lower link arms.
The side plates are 3/16′, and the top plates are 1/8′.
The kit includes 1.75′ x .120 D.O.M. tube, the forward bushing sleeve, 1.25′ threaded sleeves for the rear, and 7/8 x .188 chrome-moly boss for two shock mounting locations on each arm.
The length between the center of the bushing to the center of the heim is 55′. The shock mounting locations divided are 1′ back from the center.

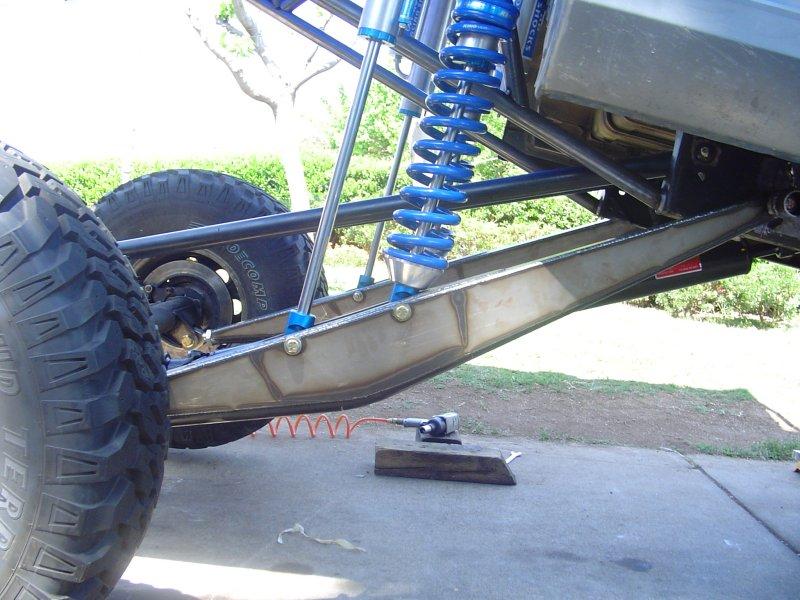

We have been racing and running these arms for years, using a 3′ king by-pass valve with extra compression to work without a hydraulic bump stop. We put all the force into the center of the arm, testing the stress, and have encountered zero problems.
The complete kit includes instructions and instructions to construct two lower-link arms.
WIY truss & 4-link mounts to set up a stock 9″
Giant TT housing any width with semi ends welded on
Upper shock mounts Dome | Flat
For ordering
Call or text us today – 714-265-1450
[email protected]
| WIY Link | Link arm kit W/O hiems or bushing, Link arm W/O tubes, bungs, bosses or sleeves |
|---|
