Bronco / F-150 Equal Length I-Beam Kit
$3,550.00
Equal-length I-beam kit for 80-96 Ford F-150 and Bronco. Beams extend 84–92″ outside tire-to-tire, mounting Dana 44 spindles. Includes radius arms and bolt-on frame mounts.
Serious Long-Travel Front Suspension for 80-96 Bronco and F-150
The GIANT MotorSports Equal-Length I-Beam Kit for 1980-1996 Ford F-150 and Bronco replaces the factory twin I-beam setup — never designed for long travel — with a purpose-built equal-length beam system. By extending the beams from 84 to 92 inches outside tire-to-tire, the kit creates the track width and geometry required for proper long-travel front suspension.
Equal-length beams eliminate the unequal scrub radius and inconsistent camber change that the factory offset I-beam design introduces at extended travel. The result is a front suspension that behaves predictably through the full travel range — critical for high-speed desert use.
What Is Included
- Equal-length I-beams (84\”-92\” outside tire-to-tire)
- Dana 44 spindle mounts
- Radius arms
- Bolt-on frame mounts
Track Width Options
Beams are available from 84\” to 92\” outside tire-to-tire. Wider track width improves stability at speed but affects tire selection and body clearance. Call 714-265-1450 to discuss which width is right for your build and tire goals before ordering.
What You Will Also Need
Dana 44 spindles (not included — source separately), crossover steering swingers (see F-150 Crossover Steering Swingers listing), coil-overs sized to your planned travel, and an engine cage (see F-150/Bronco Engine Cage 80-96). All sold separately.
Related products
-
Super Duty 2WD I-Beam Long Travel Kit
$3,800.00Add to cartEqual-length I-beam long-travel kit for Ford F-250/F-350 Super Duty 2WD trucks. Achieve 19–21″ of wheel travel with the optional crossover steering upgrade. Available as individual parts or a complete combo kit.
-

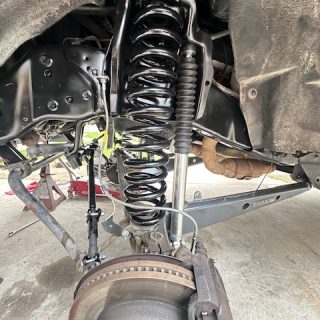

2006-2026 Ford F-250 2WD Suspension Lift & Performance Kit
