Ford F-150 64″ Long Travel Leaf Spring Kit
$1,120.00
GIANT MotorSports 64″ long-travel leaf spring kit for Ford F-150. Spring-under conversion with 17″ free arch yields 8–10″ of droop and up to 19″ of total wheel travel. Includes front/rear mounts, shackles, and bash plates.
Not sure it fits your truck?
Call or text us your year, model and build goals. You talk to the people who build the kit.
- Flat-rate shipping $152 anywhere in the US, or free pickup in Temecula, CA
- Designed and fabricated in-house in Temecula, CA
- Pay with card, PayPal, Venmo, Apple Pay or Google Pay. Pay Later available at checkout.
Getting 19″ of Travel Out of a Leaf Spring Rear
Most leaf spring setups on a stock F-150 are built around packaging constraints — short springs, limited shackle travel, spring mounted above the axle. The GIANT MotorSports 64″ kit throws out those constraints. Moving the spring below the axle adds 7″ of usable spring length, and the 17″ of free arch built into the kit delivers 8–10″ of droop beyond ride height — enough to keep the rear tires planted through aggressive terrain — and up to 19″ of total wheel travel.
Race-proven: this kit was run by Josh Bradfield (#2014) at the 2018 SNORE race.
What Is Included
- Front frame mounts
- Rear frame mounts
- Shackles
- Bash plates
Springs: Order from Deaver
Leaf springs, bushings, and U-bolts are sourced separately from Deaver Spring Co. and are not included. Deaver builds custom packs — bring them your spring length (64″), your truck loaded weight, and what you are building for, and they will spec the right rate. Running a spring that is too soft for your loaded weight blows through travel; too stiff and you lose the droop you paid for.

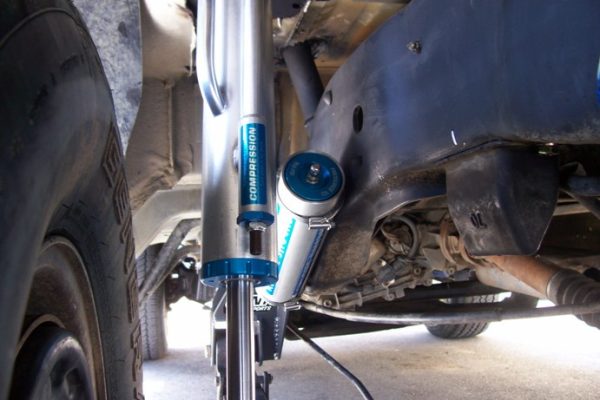

Shock Options
This kit is compatible with the Link Killer Shock mounting system. A 3.25″ Solid Shock Co. bypass shock in the under-bed mount position allows the kit to reach its full 20″ travel potential. A 4.0″ shock is available for more aggressive builds. Call to confirm shock fit for your specific F-150 configuration before ordering.
Compatible Vehicles
Ford F-150. The Bronco and Ranger have their own separate kits with geometry specific to each chassis — do not substitute.
Installation Notes
Frame mounts weld on. Pinion angle is the critical setup step after converting to spring-under — plan to dial this in carefully before driving at highway speed. Moderate-to-advanced fabrication level. Call or text 714-265-1450 with your specific truck config and we will talk through the install before you start cutting.
