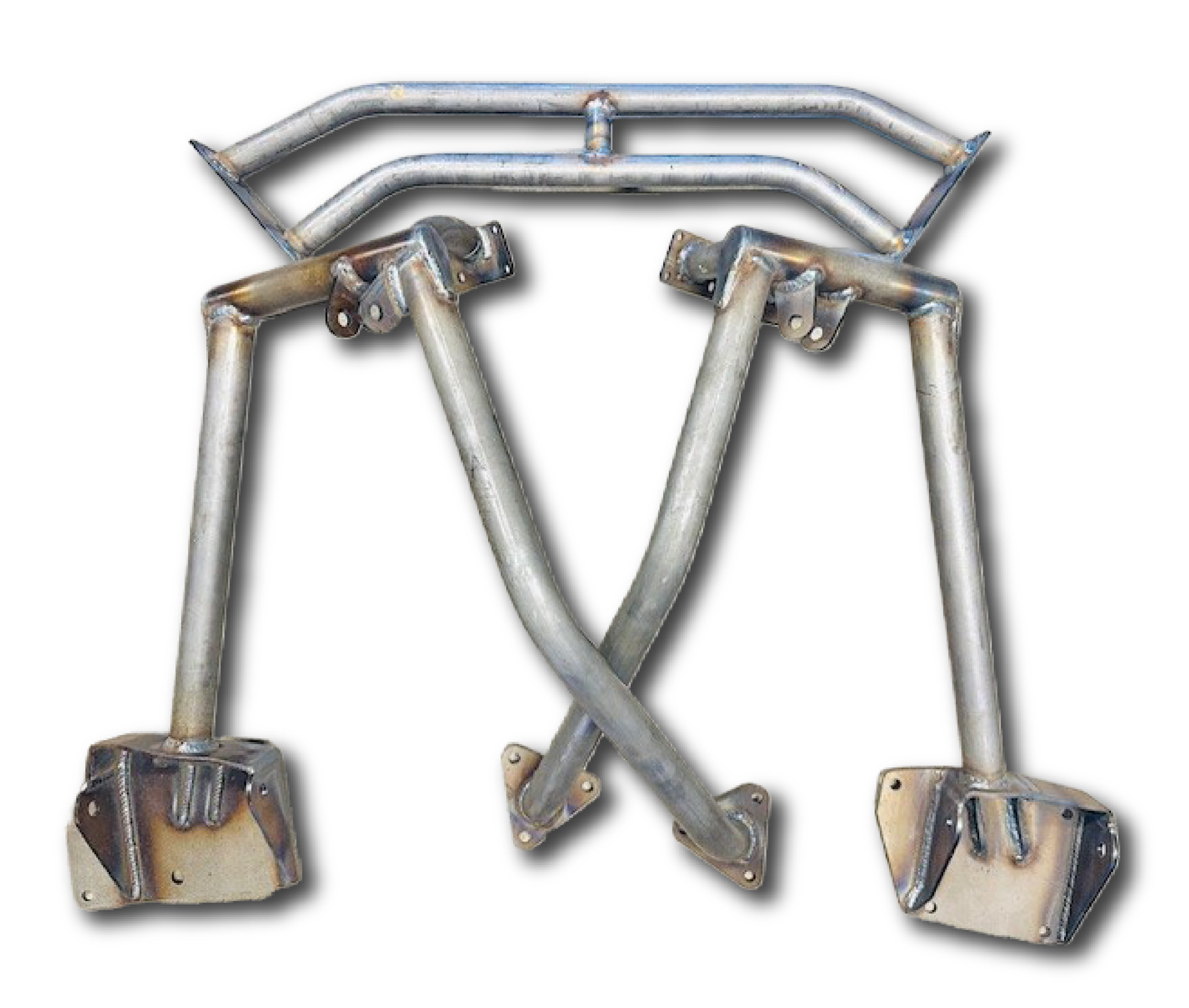

Ranger / Explorer Engine Cage
Price range: $900.00 through $1,495.00
Bolt-on engine cage for I-beam Rangers (84–96) and Explorers (91–94). Fits most aftermarket lift kits. Detachable cross member clears battery, brake booster, A/C, and airbox. Optional dimple die plate and steering swinger mounts available.
Not sure it fits your truck?
Call or text us your year, model and build goals. You talk to the people who build the kit.
- Flat-rate shipping $152 anywhere in the US, or free pickup in Temecula, CA
- Designed and fabricated in-house in Temecula, CA
- Pay with card, PayPal, Venmo, Apple Pay or Google Pay. Pay Later available at checkout.
Coil-Over Mounting for I-Beam Rangers and Explorers
When you install an I-beam kit on a 1984-1996 Ranger or 1991-1994 Explorer, the factory front spring location is no longer relevant — the coil-over moves to the engine cage. The GIANT MotorSports Ranger/Explorer Engine Cage provides the coil-over mount in a fully bolt-on assembly with a detachable cross member that clears every major under-hood obstruction.
This cage fits most aftermarket lift kits, not just GIANT MotorSports I-beam kits — making it a viable option for Ranger and Explorer builders using other beam systems who need a clean coil-over mounting solution.
Specifications
- Compatible vehicles: 1984-1996 I-beam Ranger; 1991-1994 Explorer
- Aftermarket lift compatibility: Fits most
- Cross member: Detachable
- Clearances: Battery, brake booster, A/C, cone-style airbox
- Optional dimple die plate: +$175
- Optional steering swinger mounts: Available
Detachable Cross Member
The cross member removes for maintenance access — battery replacement, brake system work, A/C service, and air filter changes all remain accessible without removing the entire cage. This is the design decision that separates a well-engineered cage from one that buries your engine bay forever.
Optional Steering Swinger Mounts
If you are adding crossover steering to your Ranger or Explorer I-beam build, the optional steering swinger mounts on this cage provide the upper steering mount location. Specify at order time. Call 714-265-1450 to include in your order.
Pairs With
Ranger I-Beam Long Travel Kit, Ranger Crossover Steering Swinger Kit, and 86-97 Ranger/Explorer Dana 44 TTB Conversion Kit. All sold separately.
| Dimple Plate | With Dimple Plate, Without Dimple Plate |
|---|---|
| Steering Swinger Mounts | With Steering Swinger Mounts, Without Steering Swinger Mounts |
